container terminal
Facility Information
- Hiroshima Port International Container Terminal
- Kaita Container Terminal
- Hiroshima Port New International Container Freight Station (CFS)

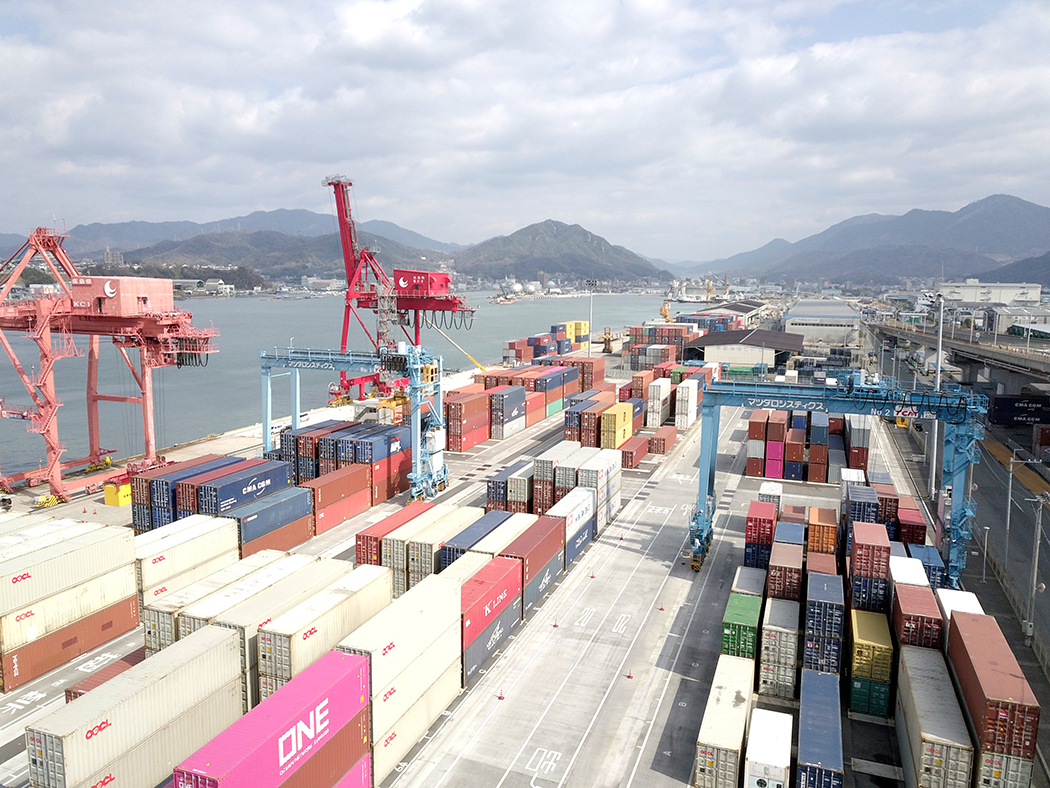

Kaita Container Terminal
This terminal has 3 gantry cranes, 2 -7.5 m quays, and a container freight station. As a second international terminal for Hiroshima Port, it is used primarily for handling automobile parts, etc.
Terminal Equipment
-
コンテナフレート ステーション(C.F.S)

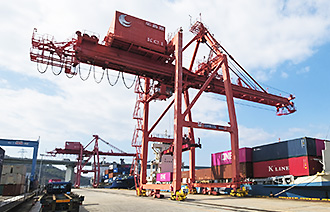

Gantry crane

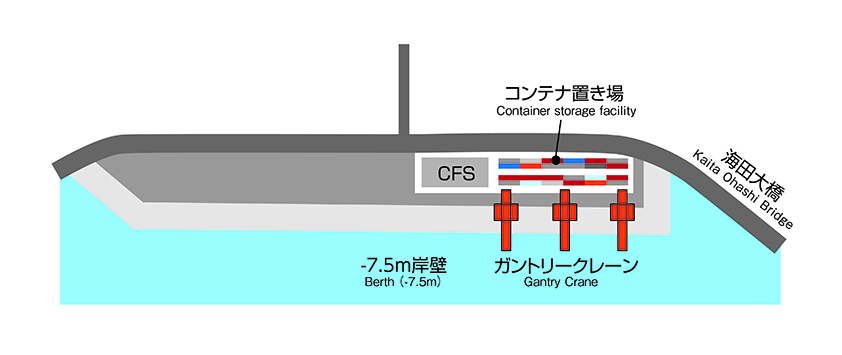

Terminal Layout
Facilities Outline
- Terminal area
- 37,360m²
- Quay
- -7.5m x 260m (1berth)
-7.5m x 390m (1berth) - Gantry cranes
- 30.5-t hoist x 3 units (Lift height: 27.5 m, Outreach: 23.5 m)
- Reefer plugs
- 18
- Container storage space
- Approx. 3,000 TEU
Fees
Classification | Facility | Unit Price | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mooring facilities | Water depth -7.5m quay | Per ton of total tonnage per mooring
|
|||||||||||||||||||||
Cargo handling facilities | Gantry crane | 34,650yen every 30 minutes | |||||||||||||||||||||
Cargo handling locations - Container yard - Vanning yard - Hazardous material yard, etc. |
8.36yen per 1 m² per day | ||||||||||||||||||||||
Container freight station | 23.88yen per 1m² per day |
